Pressing Services

Hot Isostatic Pressing System

 15” diameter x 60” long, operating to 1225 C and 15,000psi

18" diameter x 85" long operating 1225 C and 21,500psi (coming soon)

Actively expanding with more HIP systems
to come, contact us today to inquire.

Key Benefits

  • Fast turnaround
  • Precise Computer controlled with hard disk data logging
  • Low cost
  • Quality Assurance
  • Numerous Industry Applications
  • South-Central USA location
  • Large hub of Federal Express shipping 15 minutes away
  • Highly trained and experienced technicians and engineers

Capabilities

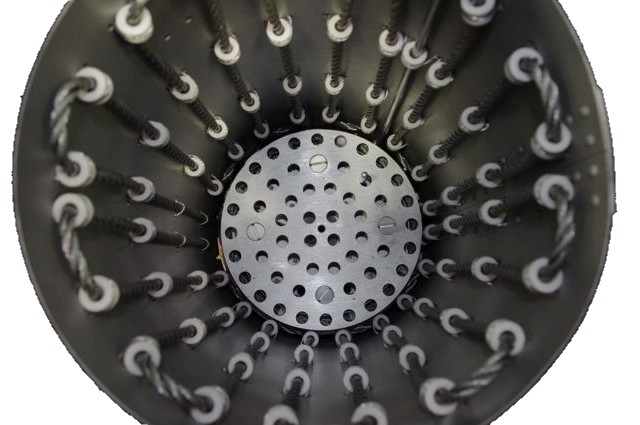

This HIP system features a Molybdenum furnace capable of 1225C in Argon. Typical heat ramp is 10C per minute. Temperature gradient is +/-  10C. Pressure control +/- 250 psi. Steel and stainless steel load shelves are available as well as alumina plates to prevent sticking.



dsc_0070resize

Contact Us Today...

We are available to discuss your hot isostatic pressing needs. Work with experienced technicians who can assist with optimizing your run parameters based on product requirements.
